01
HiTRONIC X
Programmable electronic detonator, uniquely identified by the QR code on its connector.
Dusan Engineering × Hanwha
Precise technology
for modern drill and blast
Hanwha HEBS electronic blasting system and HiTRONIC X electronic detonators for mining and infrastructure projects.
Authorized distributor of Hanwha HEBS in Central Asia
- Supply
- Engineering
- Implementation
- Training
- Technical support
Company
Engineering solutions for Central Asian industry
Dusan Engineering is an engineering and service company based in Bishkek, delivering complex technical projects for enterprises across Central Asia.
We handle equipment selection and supply, engineering design, technology implementation, specialist training and ongoing technical support.
Modern Hanwha Corporation solutions for drill and blast operations are one of the company’s core areas.
- 01
Supply
System equipment and components.
- 02
Engineering
Selecting the technical solution for a specific site.
- 03
Implementation
System commissioning and application support.
- 04
Training & service
Personnel training and local technical support.
Manufacturer
Hanwha technology
Hanwha Corporation is an international industrial group from the Republic of Korea and a developer of modern solutions for the mining industry. Its Hanwha Mining Services division supplies initiation systems, explosives and analytical software worldwide.
- 1952
- Founded as Korea Explosives, Republic of Korea
- 1978
- Began manufacturing electric MS delay detonators
- 1993
- Began manufacturing non-electric detonators
- AU · ID · CL · US
- Hanwha Mining Services operations
Source: Hanwha Mining Services (hanwhamining.com).
System
Hanwha Electronic Blasting System
A single digital system for electronic initiation control.
System components
- 02

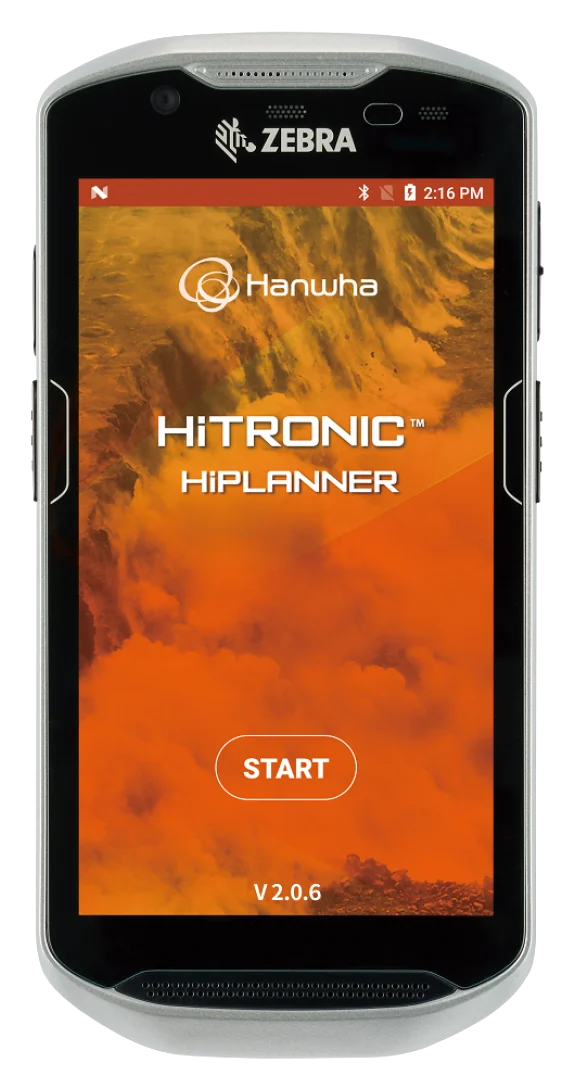

Planner
Programming unit with 5 operating modes. Each data file holds up to 1 000 detonators. Runs the HiPlanner app.
- 03

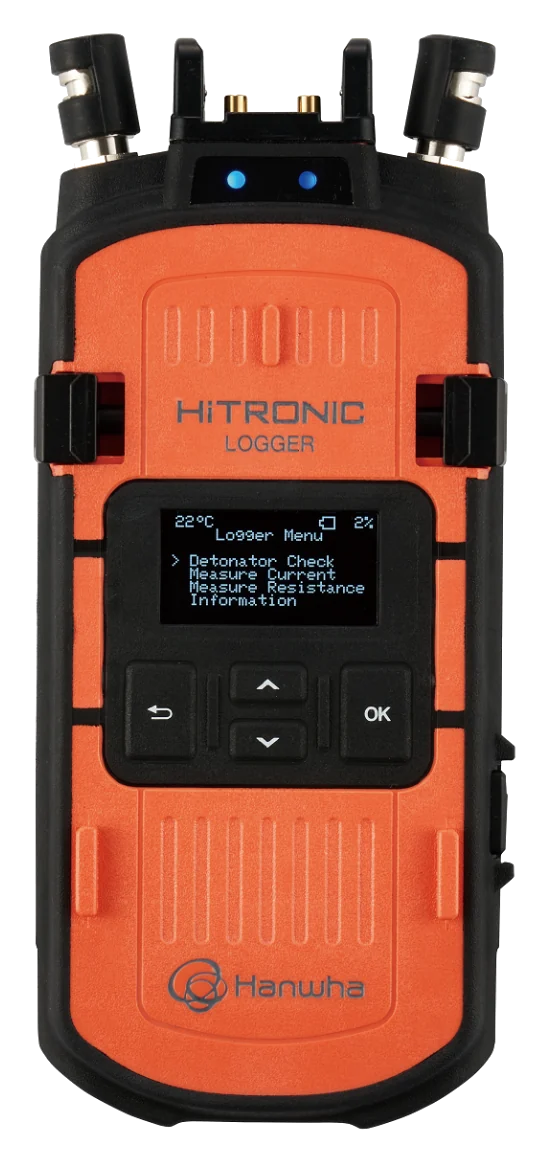

Logger
Checks a single detonator or the entire blast circuit: measures current and resistance, tests up to 500 detonators.
- 04

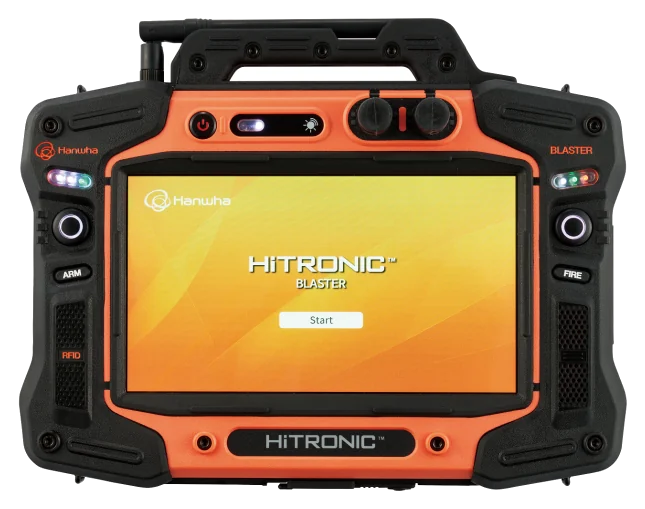

Blaster
Testing, charging and initiation. Up to 3 000 detonators in standalone mode, with two-way communication and circuit testing.
Harness Wire
The system’s connecting line. Supplied in 250 m rolls.
Three programming methods
- Scanning
- Logging
- Tagging
The Planner works on its own by scanning QR codes, or paired with the Logger for Tagging and Logging.
Product
HiTRONIC X
Precision. Control. Reliability.
Hanwha’s programmable electronic detonator for surface and underground mining, tunnelling and urban construction. To be used only with the Blaster, Logger and Planner units of the HEBS system.
- 0–30 000ms
- Programmable delay range
- 1ms
- Programming interval
- QR ID
- Unique detonator identification
- Two-way
- Two-way communication and circuit testing
- STD / HD
- Product versions
- Scanning · Logging · Tagging
- Programming methods
Available versions
| Version | Lengths |
|---|---|
| HiTRONIC X STDFolded | 6 / 9 / 12 / 15 / 18 m |
| HiTRONIC X STDSpool | 15 / 20 / 25 / 30 m |
| HiTRONIC X HDCoiled | 6 / 9 / 12 / 15 / 18 / 20 / 25 / 30 m |
Scope of supply and lead wire lengths are selected to match site parameters.
Request technical informationAdvantages
Finer control.
Greater confidence.
- 01
Precise initiation
Millisecond programming gives precise control over the initiation sequence.
- 02
Fragmentation control
Optimised energy distribution helps improve the quality of rock fragmentation.
- 03
Vibration control
Flexible delay programming allows seismic impact to be managed.
- 04
Diagnostics and safety
System communication and diagnostics keep the circuit under control right up to initiation.
- 05
Remote operation
HEBS supports remote and centralised blasting scenarios.
Capabilities
System scale
Confirmed HEBS capabilities according to the manufacturer.
- up to1 000
- detonators per Planner data file
- up to500
- detonators tested by the Logger
- up to3 000
- detonators per Blaster in standalone mode
- up to21
- units in a Multi-Blast configuration
- up to63 000
- detonators in a Multi-Blast configuration
- up to5km
- remote initiation within line of sight
Figures are taken from official Hanwha Mining Services documentation. The range applies to the LoRa link without repeaters.
Applications
Proven on real sites
HiTRONIC in practice across a range of geological and climatic conditions.
Kyrgyzstan
Issyk-Kul Region
HEBS with HiTRONIC X electronic detonators applied at high altitude and in low temperatures.
Key outcomes
- Operation at temperatures down to −30 °C
- Fast scanning and logging
- Interactive blast pattern programming
- Compact field equipment
- Long-range initiation up to 4.4 km
- Several zones fired in one operation
Chile
Copper mine
USA
Quarry, Georgia
Extreme conditions
Cold · wet holes · underground
Status
Authorized distributor of Hanwha Corporation
Dusan Engineering LLC is appointed as a Distributor for Hanwha Corporation’s HEBS Electronic Blasting System in Central Asia.
This allows us to supply equipment directly, honour the manufacturer’s warranty commitments and deliver personnel training to Hanwha methodology.
- Territory
- Central Asia
- Document
- Certificate of Distributorship
Request a copy of the certificate
A copy of the certificate is available on request — get in touch and we will send it over.
Hanwha CorporationCertificate of Distributorship
Dusan Engineering LLC
Distributor — HEBS Electronic Blasting System, Central Asia
